4 Ports RGB DMX Constant Voltage LED Controller 12 24VDC

4 Outputs RGB 3 Channel High Power LED Strip DMX CV Power Supply,DMX LED strip controller.


LOADING IMAGES

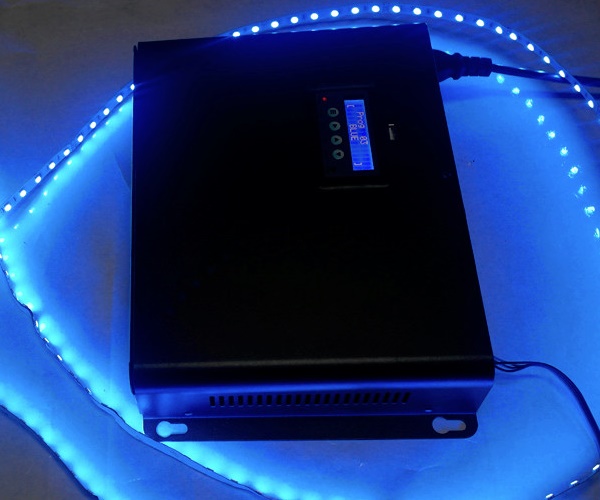

4 Ports RGB DMX Constant Voltage LED Controller 12 24VDC
main parameter :
  • item no :

    100622
  • MOQ :

    5
  • orgins :

    China
  • Color :

    black
  • lead date :

    1 weeks
inquiry now
product details

Description:

SSL-DS400 combines digital power conversion, constant Voltage drivers, and superior dimming control into one cohesive LED power supply,It allows you to connect your RGB LED Lights, LED Lighting, LED Ribbon strips or RGB LED Modules to a DMX-512 Lighting controller. Then by the use of PWM and DMX, you can change the color and dimming of your RGB LED lights. For 12VDC or 24VDC systems only. 5A per channel with a maximum power of 400W, It has a frequency of 4000 HZ which allows it to be used for television and video applications with no camera flickering, This LED Driver complies with DMX 512/1990 Protocol and provides you with the freedom to control 4 x 3 channels of LED strip, LED modules.

Features:

Model Number: SSL-DS400

Brand Name: RayElite

Input power: 90-132V/180-264V AC, 47-63HZ

4 ports RGB constant voltage output,12V or 24V/400W total

handle the high amp draw of RGB Strips

4 System modes: AUTO/ SOUND/DMX/SLAVE

3ch,4ch,6ch,12ch,16ch 5 DMX modes

4KHZ allows it to be used for video applications with no camera flickering

16bit / 4096 steps deep dimming levels of intensity

Smooth, reliable Dimming Curve optimization

Up to 4 zones 12 independent control channels

complies with DMX 512/1990 Protocol

2×16 Friendly blue and white LCD display

Firmware updatable Via USB port

Specifications:

Model No.:

SSL-DS400

Power input:

90-132V/180-264V AC, 47-63HZ

Power consumption:

400watts

Phoenix Connector output:

4 zones / 12 channels CV 12V/24VDC

DMX:

3ch,4ch,6ch,12ch,16ch 5 DMX modes

Refresh rate:

4000HZ

Dimming Level:

16 bit, 4096 Steps, 2 Dimming Curves

Control:

DMX/AUTO/SLAVE/SOUND

Upgrade

Firmware Upload via USB port

display

2×16 blue LCD display

Housing:

Metal case

Dimension(mm):

318L x 215W x 64H

RGB LED Strip Controller

LED Tape Power SupplyConstant Voltage LED DriverDMX LED Ribbon Cable Driver12VDC 24VDC PSU CV LED Controller
