Description:

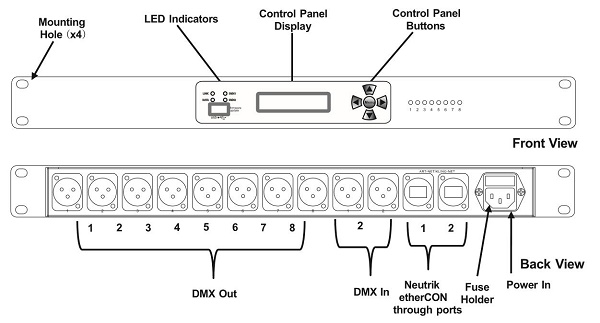

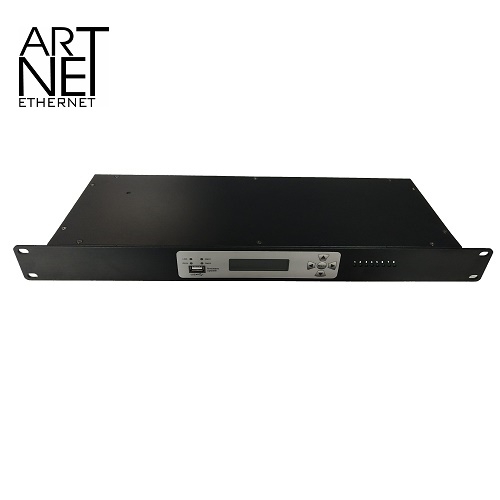

SSL-C8U is a reliable and versatile rack-mountable Art-Net-to-DMX adapter with an integrated optical DMX splitter and Art-Net hub capability. It has two 3 - pin DMX In ports and eight 3-pin DMX out ports, all optically isolated. It takes up to 8 Art-Net universes simultaneously. The eight 3-pin DMX Out ports can be assigned to either of the DMX In ports or to one of the Art-Net Neutrik etherCON ports . Neutrik etherCON ports are through ports that allow daisy chaining of the fixture units.The fixture provides a reliable, highly customizable network infrastructure for complex control systems.

Features:

Model Number: SSL-C8U

Brand Name: RayElite

90V-260V AC input

Up to 8 DMX512 universes on a 10Base-T/100Base-T Ethernet link

8 DMX ports output

2 DMX inputs for DMX splitter

Artistic License Art-Net 4 protocol support

Static IP configuration

port address, IP address,MAC,OEM code configurable

Rack mountable (19" x 1U)

Software-upload via USB port

Two Neutrik etherCON in/through port

G.W.: 2.2KG
