DMX512 RGBW 4CH Constant Current LED Driver

main parameter :

item no :
100425
MOQ :
10
orgins :
China
Color :
black
lead date :
2 weeks

inquiry now

product details

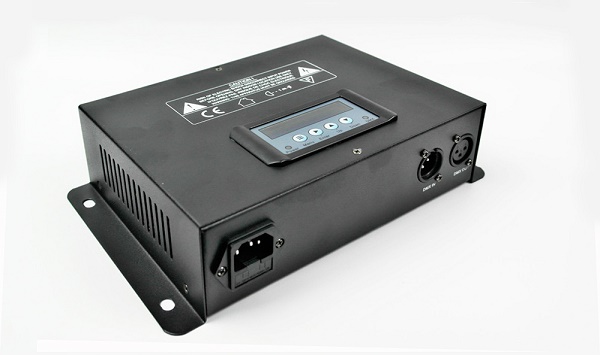

Our RGBW constant current LED driver of SSL-DL48 is an all in one unit combining and transformer and a DMX receiver, it’s commonly used in numerous LED indoor and outdoor lighting applications such as, LED horticultural lighting, LED residential lighting, LED street lamps, high bay LED lighting, LED signage, LED decorative and architectural lighting, LED theatre/stage lighting, LED embedded lighting and LED large screen displays.

Model Number: SSL-DL48

Brand Name: RayElite

Type: Led Constant Current LED Controller

Input power: 90-264V AC, 47-63HZ

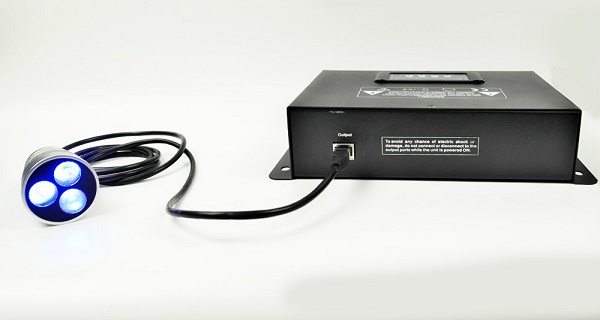

output: 1 RJ45 port constant current output,48V/350mA

Control LEDs: RGBW 4 ways,each way 12 x 1W RGBW LED’s

refresh rate: 1000HZ refresh rate,Flicker Free Operation for TV and FILM

4ch,5ch,6ch,7ch,8ch,5 DMX modes

2×16 Friendly blue and white LCD display

Software-upload by optional accessory via DMX line

Model No.	SSL-DL48
Power input	90-264V AC
DMX:	4ch,5ch,6ch,7ch,8ch 5 DMX modes
Power output	R,G,B,W 4CH output 350mA 48 watts
Upgrade	software can be updated via dmx port
Control:	DMX/AUTO/SLAVE/SOUND
display	2×16 blue LCD display
refresh rate	refresh rate 1000HZ,suitable for TV studio
Dimension(mm):	255 x 160 x 63

RGBW LED CC 350mA Driver LED Constant Current Controller RGBW LED DMX512 Decoder
